Ferrari F2004 specs & info

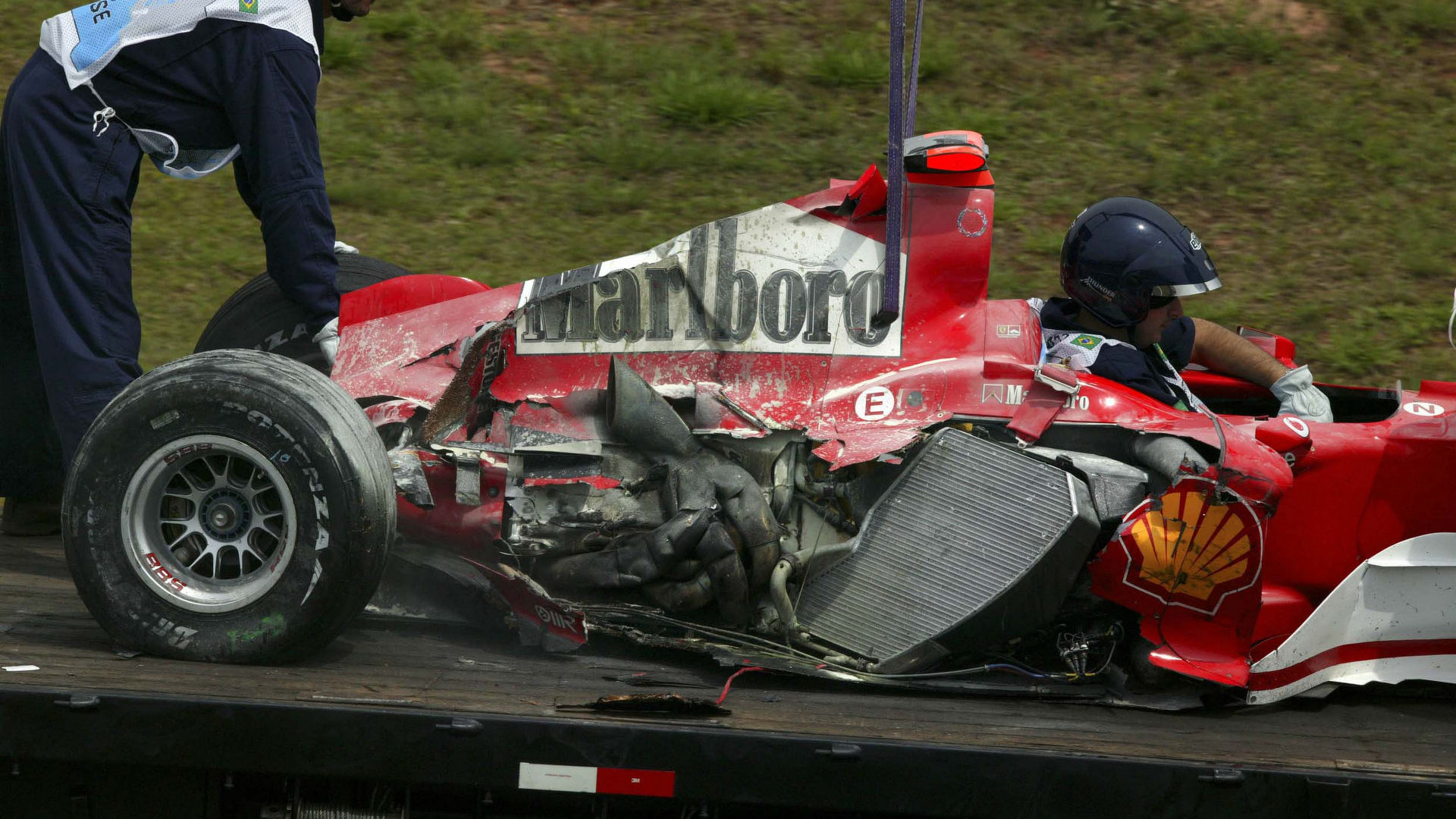

Crashed Ferrari F2004 car of Michael Schumacher

Ferrari's F1 car for 2004

Technical specifications Ferrari F2004 F1 car

Chassis: Carbon-fibre and honeycomb composite structure
Suspension: Independent suspension, push-rod activated torsion springs front and rear
Brakes: Ventilated carbon-fibre disc brakes
Weight with water, lubricant and driver: 605 kg
Wheels: (front and rear) 13”

Dimensions

Length: 4545 mm
Width: 1796 mm
Height: 959 mm
Wheelbase: 3050 mm
Front track: 1470 mm
Rear track: 1405 mm

Drivetrain

Designation: Ferrari Type 053
Type: Naturally aspirated V10, cylinder block in cast aluminium
Cylinder angle: 92°
Power Output: Approx 920 bhp at 19.100 rpm
Total displacement: 2,997 cm³
Timing gear: Pneumatic distribution, 40 valves
Fuel feed: Magneti Marelli digital electronic injection
Ignition: Magneti Marelli static electronic ignition
Transmission: Ferrari longitudinal gearbox. Limited-slip differential. Semi-automatic sequential electronically controlled gearbox, 7 gears + reverse
