Mercedes W11 specs & info

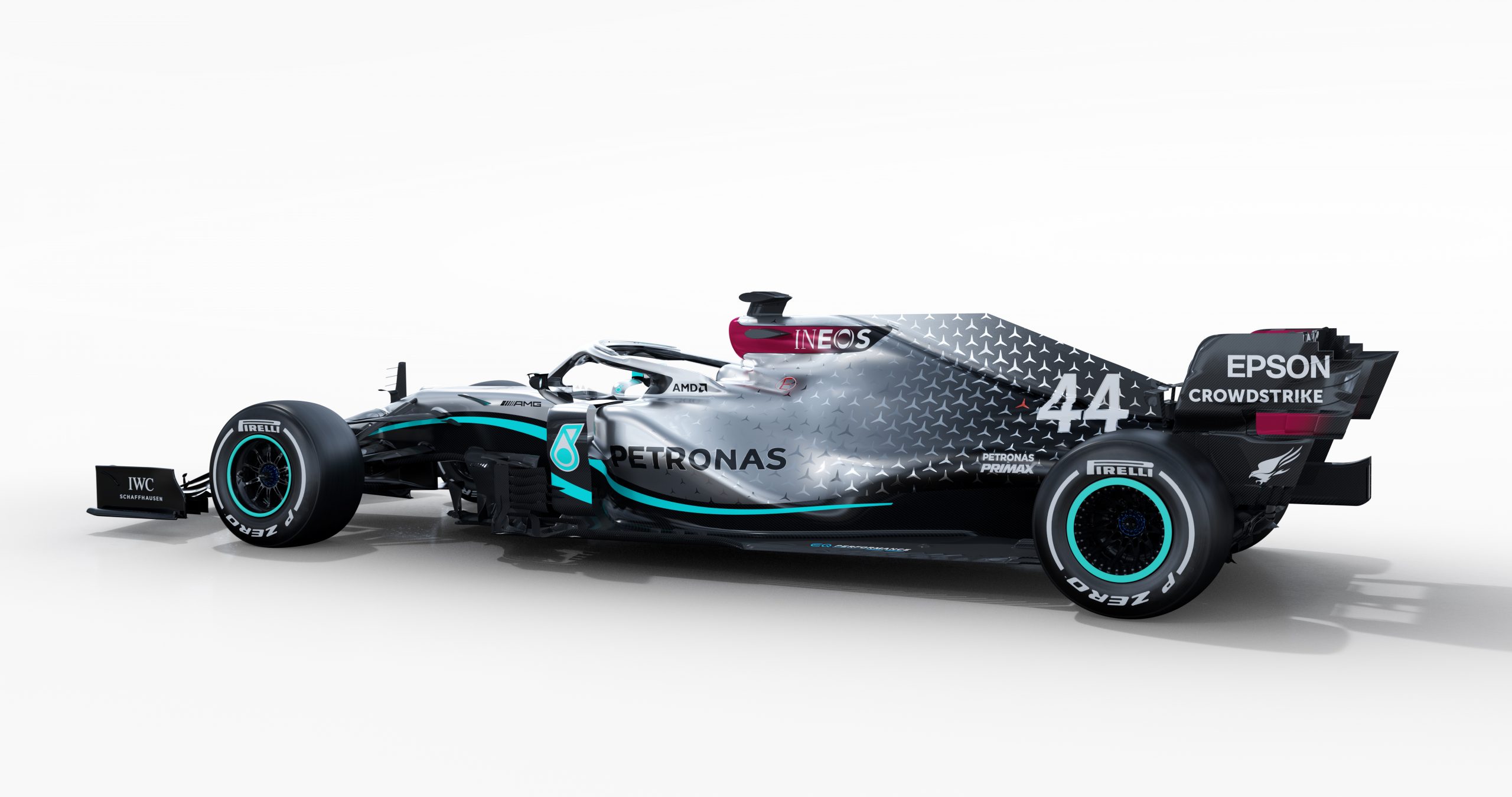

Mercedes-AMG F1 W11 EQ Performance - Render

Mercedes'  F1 car for 2020

Technical specifications Mercedes W11 F1 car

Monocoque: Moulded carbon fibre and honeycomb composite structure
Bodywork: Carbon fibre composite including engine cover, sidepods, floor, nose, front wing and rear wing
Cockpit: Removable driver’s seat made of anatomically formed carbon composite, OMP six-point driver safety harness, HANS system
Safety structures: Cockpit survival cell incorporating impact resistant construction and penetration panels, front impact structure, prescribed side impact structures, integrated rear impact structure, front and rear roll structures, titanium driver protection structure (halo)
Front Suspension: Carbon fibre wishbone and pushrod activated torsion springs and rockers
Rear Suspension: Carbon fibre wishbone and pullrod activated torsion springs and rockers
Dampers: Penske (unconfirmed)
Wheels: OZ, forged magnesium
Tyres: Pirelli
Brake system: Carbon / carbon discs and pads (by Carbone industries) with rear brake-by-wire
Brake calipers: Brembo
Steering: Power assisted rack and pinion
Electronics: FIA standard ECU and FIA homologated electronic and electrical system
Instrumentation: McLaren Electronic Systems (MES)
Fuel system: ATL Kevlar-reinforced rubber bladder

Transmission

Gearbox: Eight-speed forward, one reverse unit with carbon fibre maincase
Gear selection: Sequential, semi-automatic, hydraulic activation
Clutch: Carbon plate

Dimensions

Overall length: over 5000mm
Overall width: 2000mm
Overall height: 950mm
Overall weight: 746 kg (including driver and camera, excluding fuel)

Powertrain

Designation: Mercedes-AMG F1 M11 EQ Performance
Type: Turbocharged, 90° 1.6l V6, assisted with kinetic and heat ERS
No of valves: 24 (4 per cylinder)
Fuel injection: High-pressure direct injection (max 500 bar, one injector/cylinder)
Pressure charging: Single-stage compressor and exhaust turbine on a common shaft
Bore: 80mm
Stroke: 53mm
Crank height: 90mm (minimum allowed)
Energy recovery system: Integrated Hybrid energy recovery via electrical Motor Generator Units
Energy Store: Lithium-Ion battery solution, between 20 and 25 kg
Fuel: PETRONAS Primax
Lubricants: PETRONAS Syntium
Gearbox & hydraulic oil: PETRONAS Tutela
Power: In excess of 950bhp
