F1 tyre preview: 2013 Canadian Grand Prix

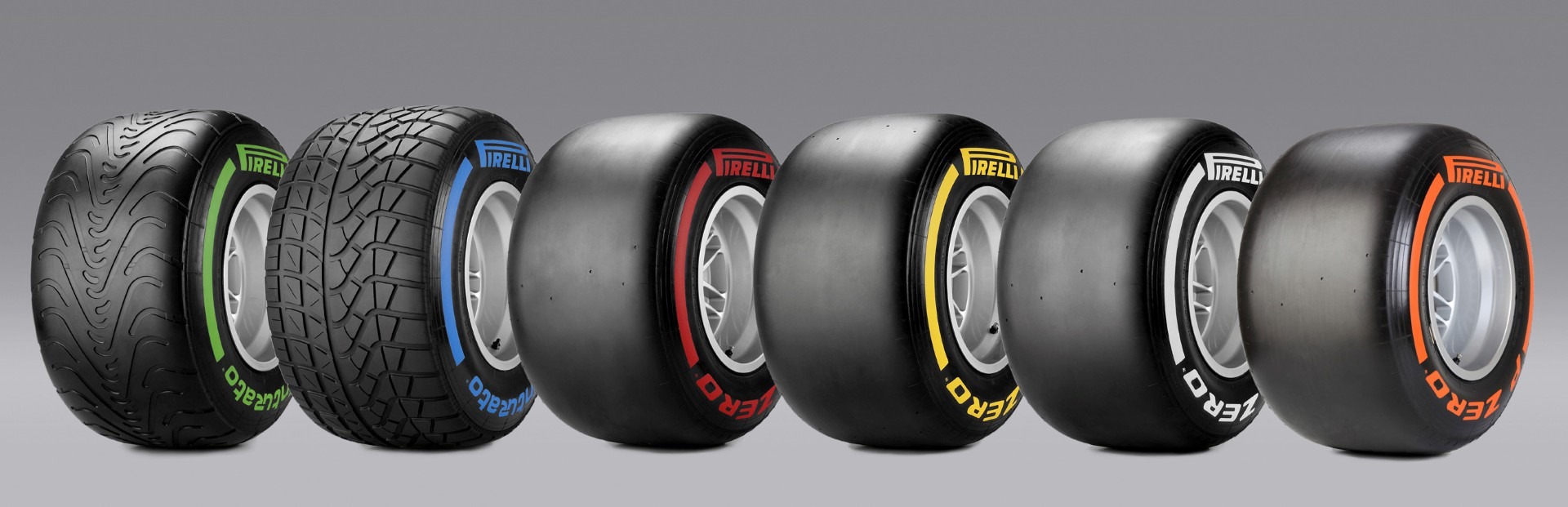

The Gilles Villeneuve circuit in Montreal is an interesting circuit with a mixture of long, fast straights and slow corners. Pirelli will bring the P Zero White medium and P Zero Red supersoft tyres to Montreal: both tyres with a low working range, which makes them perfectly matched to the likely weather conditions at the semi-permanent Canadian track. Temperatures are usually quite cool and there have been a number of wet races in the past, which means that the Cinturato Green intermediates and Cinturato Blue wet tyres might also make an appearance. In addition, Pirelli will also bring two sets per car of a prototype medium tyre, which features a revised rear construction that is likely to be used for the rest of the season, for use on Friday only.

Paul Hembery

Paul Hembery: "Canada is always one of the most unpredictable races of the year and this is partly because it is so challenging for tyres, mostly due to the heavy braking and traction demands of the circuit. Coupled with a high degree of track evolution over the weekend, effective tyre management has always been a key to success in Montreal, right from when the circuit was inaugurated in the late 1970s.

We’d expect two to three pit stops per car, but we’ll only be able to make a precise forecast after Friday once we’ve seen some running out on track. It’s a circuit where weather conditions often play a key role: our very first Canadian Grand Prix in 2011 actually turned out to be the longest race in Formula One history because of heavy rain and a subsequent race stoppage. Last year was dry, but we witnessed a new record with the seventh winner from seven races.

Because of the high degree of tyre wear and degradation, we would expect to see a number of different strategies at work, as was the case last year – with teams deciding whether to go for a ‘sprint’ strategy or to do fewer stops and put the accent on endurance. Last year the ‘sprint’ approach won the race, but with so many different parameters at work, the teams will have to analyse the data – not to mention the weather forecast – very carefully before committing to any particular tactics. Often a flexible approach works best in Canada, so we can also expect many teams to be leaving their options open, allowing the drivers to really make the difference when it counts.”

Jean Alesi

Jean Alesi: “Canada will always be an incredibly special place for me, because of course it’s where I won the race in 1995, driving for Ferrari, with the number of Gilles Villeneuve: number 27. It’s hard to describe the emotion, but it was just an amazing feeling of joy and an incredible atmosphere, with the crowd running onto the track afterwards… Canada is always a place where the fans are absolutely fantastic; it’s a great feeling to go to a country where Formula One is embraced so enthusiastically. For a driver it is a really big challenge too: as so many of the grandstands are close to the track and the walls are very close as well, so it feels a bit like Monaco circuit in some ways. But of course it’s a lot faster than Monaco and this is why it is challenging for the tyres as well. The main characteristic is acceleration and braking: you cover a really wide range of speeds from flat-out on the straight to very slow corners. It’s important to manage the tyres properly and have a good strategy to cope with these demands. I think we’re in for a fantastic race, this is a grand prix I always really look forward to.”

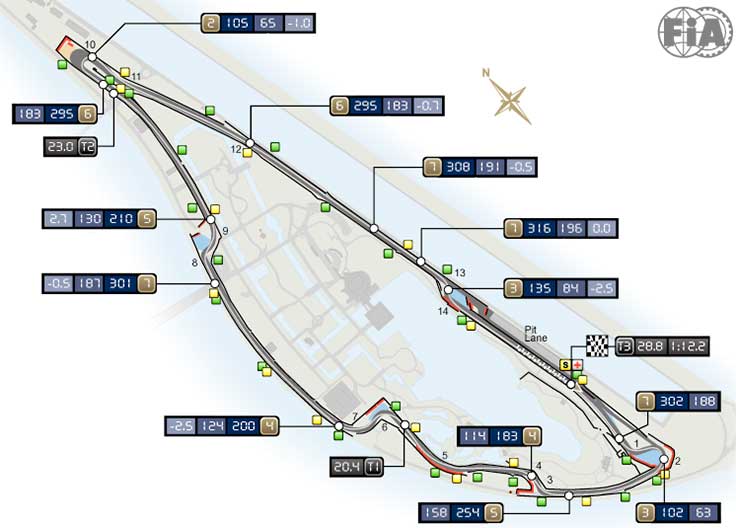

The circuit from a tyre point of view

Along with circuits like Singapore, Korea and Monaco, Canada has a very high safety car probability. This is one of the reasons why a flexible strategy often pays dividends there. A safety car can change the complexion of a race entirely – and while this wasn’t the case in Monaco two weeks ago, in Canada there are many more opportunities for overtaking.

Martin Withmarsh (left), Lewis Hamilton (middle) Sergio Pérez (left)

The race winner last year (Lewis Hamilton) stopped twice, while the second and third placed finishers stopped only once. The strategies all the way down the top 10 were half and half: five out of the top 10 stopped twice and the other five stopped once. Last year was a different tyre nomination though: soft and supersoft.

With a semi-permanent track that is not used extensively during the year, there’s a risk of graining. This occurs when a cold tyre that is not up to temperature slides excessively against the track surface instead of finding grip, and causing an unusual pattern of wear. This phenomenon is mostly seen at the start of the weekend when the track is at its most slippery, without any rubber laid down.

Technical tyre notes

One of the reasons why Canada is so demanding for the tyres is that the cars tend to run low downforce to maximise their speed on the straights. This means that the tyres are doing all the work when it comes to getting the car round the corners, putting the emphasis on mechanical rather than aerodynamic grip.

Fernando Alonso cycling on Canada kerbs

The rear tyres are particularly challenged at Montreal, due to the heavy traction demands out of slow corners and the hairpin. It’s very easy to produce wheelspin if drivers are too eager on the throttle, which accentuates rear tyre wear. The track is also quite bumpy, which also provokes wheelspin as the rear tyres break traction.

Adding to the punishment for the tyres in Canada are the kerbs: a well-known feature of the track. The kerbs in Canada are high and aggressive, with the cars hitting them at approximately 130km/h through the final corner, close to the famous ‘wall of champions’.

The tyre choices so far this 2013 F1 season:

Australian Grand Prix: Supersoft & Medium
Malaysian Grand Prix: Medium & Hard
Chinese Grand Prix: Soft & Medium
Bahrain Grand Prix: Medium & Hard
Spainish Grand Prix: Medium & Hard
Monaco Grand Prix: Supersoft & Soft
Canada Grand Prix: Supersoft & Medium

Meet the Pirelli F1 Team: Anna Playford – Formula One tyre engineer

Anna Playford

Anna, from Chichester in the United Kingdom, is one of Pirelli’s 15-strong squad of engineers that travel to every grand prix. This year, the team that she has been assigned to is Williams. During grand prix weekends she acts as the link between the team and Pirelli.

Her job at the track predominately consists of looking after the Pirelli products and making sure that the tyres run within the parameters that have been set. As well as monitoring tyre performance and characteristics in real time, she analyses additional tyre-related data (such as pressures, temperatures and wear). All this info is put into a daily report presented to the team at their evening meetings. This report helps the team make further decisions regarding their race strategy and set-up for the following sessions.

Away from races, Anna is based at Pirelli’s technical hub in the UK, known as the DTC (Didcot Technical Centre). While there, she continues to go through data from the race weekend, producing reports for Pirelli HQ in Milan as well as preparing for the upcoming events. Anna is also involved in some R&D projects there, as well as the development of tools which enables Pirelli to continuously upgrade the service that is provided to the teams.

Currently Anna is the only female engineer in the line-up, having been inspired to get into Formula One through her father. She then studied motorsport engineering at college, joining Pirelli in 2011.

Away from work, Anna enjoys spending time with family and friends – as well as fitting in some essential shopping opportunities…
